Barcodes are essential tools for inventory management and tracking, enabling efficient data capture and processing. They are broadly categorized into linear barcodes (1D) and matrix barcodes (2D), each serving distinct purposes based on the volume of data required and the application environment. Below is an overview of the most common types of barcodes and how they function.

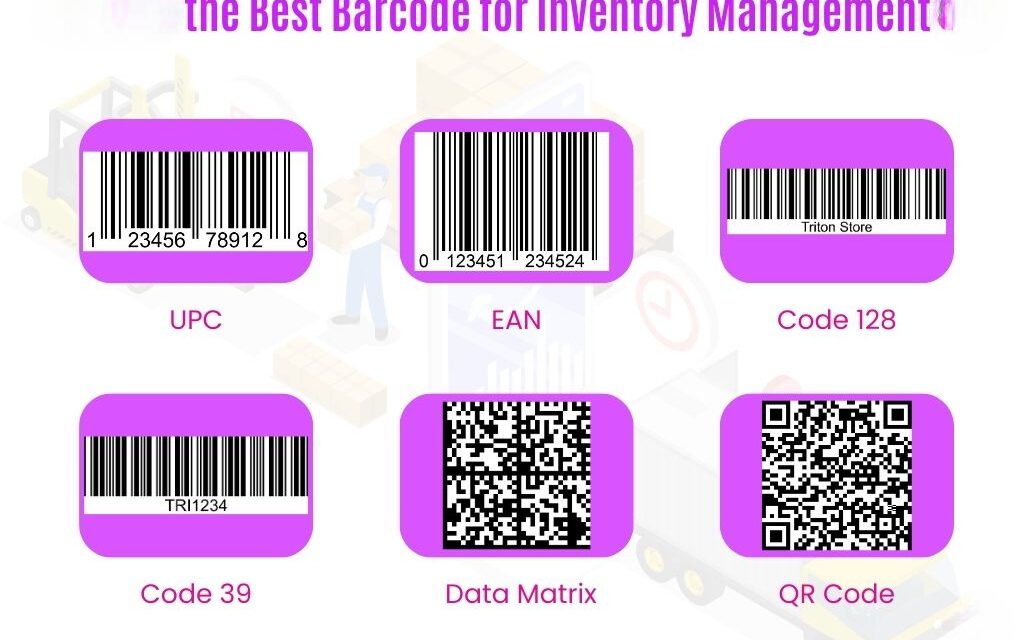

1. Linear (1D) Barcodes
Linear barcodes consist of vertical lines of varying widths and spaces that encode alphanumeric data. They are widely used due to their simplicity and compatibility with standard barcode scanners.
a. UPC (Universal Product Code)
- Function: UPC barcodes are commonly used in retail for product identification at the point of sale (POS). Each code is unique to a specific product and manufacturer.
- Structure: A 12-digit numeric code divided into sections for manufacturer and product identification.
- Applications: Supermarkets, retail stores, and consumer goods packaging.
- Advantages: High-speed scanning, globally standardized, and optimized for inventory tracking.
b. Code 128
- Function: Encodes a wide range of alphanumeric characters, making it ideal for applications requiring detailed data.
- Structure: Variable-length format, efficient for compact spaces.
- Applications: Logistics, shipping labels, and supply chain tracking.
- Advantages: High data density, compatible with compact labels, and supports diverse industries.
c. Code 39
- Function: Encodes numbers, uppercase letters, and some special characters. It’s flexible but less data-dense than Code 128.
- Structure: Variable-length format with a combination of bars and spaces representing each character.
- Applications: Industrial settings, ID badges, and automotive industry.
- Advantages: Easy to generate and versatile for general-purpose use.
d. EAN (European Article Number)
- Function: Similar to UPC, EAN is primarily used in global retail for product identification.
- Structure: 13 digits (or 8 digits for smaller items), with sections for country, manufacturer, and product.
- Applications: International retail, books (EAN-13 is used in ISBN codes).
- Advantages: Global standard, facilitates international trade and product tracking.
2. Matrix (2D) Barcodes
Matrix barcodes use patterns of squares, dots, or hexagons to encode data in two dimensions, allowing them to store much more information than linear barcodes.
a. QR Code (Quick Response Code)
- Function: Designed for quick scanning with smartphones or dedicated scanners. QR codes can encode URLs, contact information, and more.
- Structure: A square matrix of black and white modules.
- Applications: Marketing, ticketing, mobile payments, and inventory tracking.
- Advantages: High data capacity, fast scanning, and error correction for damaged codes.
b. Data Matrix
- Function: Encodes alphanumeric or binary data in a small space, often used in industries requiring compact labeling.
- Structure: A square or rectangular grid of black and white cells.
- Applications: Electronics, medical devices, and aerospace parts tracking.
- Advantages: Small size, high-density data storage, and robust error correction.
c. PDF417
- Function: A stacked linear barcode capable of encoding large amounts of data, including text and images.
- Structure: Multiple linear barcode rows stacked vertically.
- Applications: Transport, identification cards, and shipping labels.
- Advantages: Large data capacity and compatibility with various scanners.
3. Specialized Barcodes
Some barcodes are designed for niche applications where unique characteristics are required.
a. ITF-14 (Interleaved 2 of 5)
- Function: Used for encoding product packaging information at the distribution level.
- Structure: Numeric-only, with an interleaved structure for compact representation.
- Applications: Cartons, pallets, and bulk packaging in warehouses.
- Advantages: Durable for shipping and compatible with automated systems.
b. GS1 DataBar
- Function: Encodes additional information such as expiration dates, batch numbers, and product weights.
- Structure: A smaller barcode than UPC, with variations for linear or stacked formats.
- Applications: Grocery, healthcare, and perishables tracking.
- Advantages: Compact size, more data capacity, and support for variable-weight items.
How Barcodes Function
Barcodes work by encoding data in a visual format that can be read by scanners and interpreted into actionable information by software systems.
- Scanning: A barcode scanner emits a light beam (typically a laser or LED) that reads the barcode.
- Reflection and Capture: The scanner detects the reflection of light from the barcode’s black and white elements.
- Decoding: The scanner converts the pattern of reflected light into digital data.
- Data Processing: The data is sent to a computer or point-of-sale system, where it is used for inventory tracking, pricing, or identification.
Conclusion
The choice of barcode type depends on the application’s specific requirements, including data capacity, size, and environment. Linear barcodes like UPC and Code 128 are excellent for retail and logistics, while 2D barcodes like QR codes and Data Matrix excel in data-rich and space-limited scenarios. Together, these barcodes enable seamless inventory management, efficient tracking, and enhanced operational efficiency across industries.
